Specifications
Features
Display MIPI 3-inch screen.
- External I/O port 1 USB 2.0 (power supply
DC5V/2.5A)
1 SIM card slot, support MICRO SIM card.
1 GPS feeder interface.

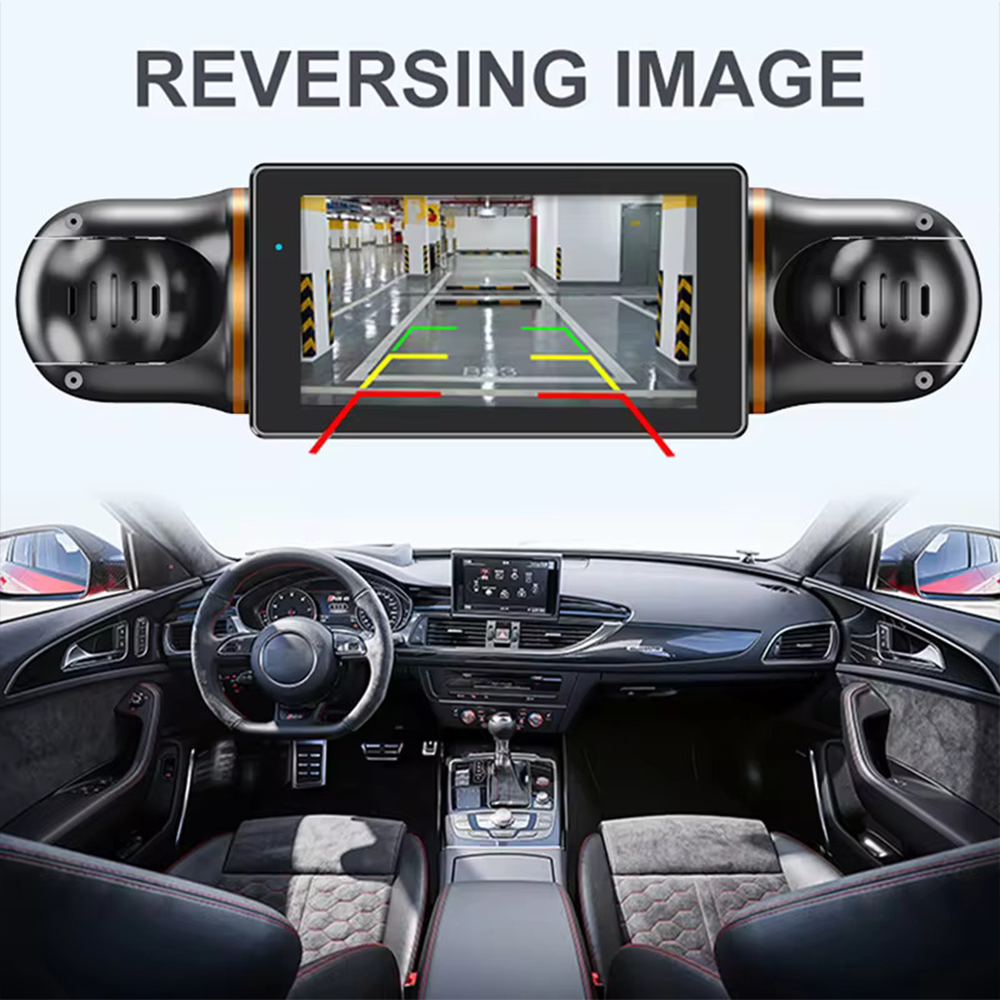

1 analog rear pull camera (2.5MM 4-segment earphone holder) interface, compatible with automatic reversing function.
Speaker built-in (8ohm/1.5W)
MIC built-in -40db ±2db
- Pull back camera support AHD (high-definition camera) cable length
6 meters
Full screen touch support capacitive screen
GPS navigation dual mode Beidou + GPS
WIFI 2.4G 802.11b/g/n
Data service (Unicom Telecom 4G) Support frequency band:
- GSM
B2/B3/B5/B8
- WCDMA
B1/B2/B5/B8
- LTE FDD
B1/B3/B7/B8/B20
- LTE TDD
B38/B39/B40/B41
Supports a maximum rate of 150Mbps (the actual rate is determined by the network environment)
BT BLE 4.0 can support master and slave devices
FM transmitter support 88-108MHz
Front Camera 720P & Back Camera1080P
Camera angle 135° Front & 120° Back
Video format TS
Picture format JPEG
Storage compression method Front H.264
Power supply mode Step-down cable MINI USB left-curved 90° interface (B+, ACC, GND)
Operating system Android 8.1
Language Support Support (Chinese and English)
ADAS support
G-SENSOR three-axis
Loop recording support, no seconds
Recording function support
Time watermark support
The video quality of the front camera supports up to 1920*1080 (1080P 20f/s)/HD1280x720 (720p 25f/s)
Rear camera video quality AHD HD
Photo resolution up to 5M
